Unlock maximum low-end power in your Club Car IQ Regen with the Curtis 1510/1515 600 Amp 10-Spline High Torque Motor and Controller Kit. This heavy-duty upgrade is built for serious torque, delivering strong hill-climbing ability, smooth acceleration, and reliable performance under load. With a powerful 600-amp Curtis controller paired with a durable high-torque 10-spline motor and reliable 48v solenoid, it’s the ultimate choice for demanding drivers who want consistent, high-output performance.

Motor Features:

• 10-spline coupler
• Motor has 12-inch overall length (verify clearance before installation)
• Direct factory motor replacement
• Includes a speed sensor/ magnet
• Includes a 1-year warranty
• With upgraded controller:
  • Speeds up to 20 mph at 48 volts
  • 12.3 HP Peak at 48 volts
  • Up to 75% increase in torque (High torque applications can damage stock controllers, Navitas upgrade recommended)

Controller Features:

• Adjust the Top Speed, Acceleration and Regenerative Braking on-the-fly
• Increase Range
• Easy Plug and Play installation
• Built-in Protection to prevent motor burn-out

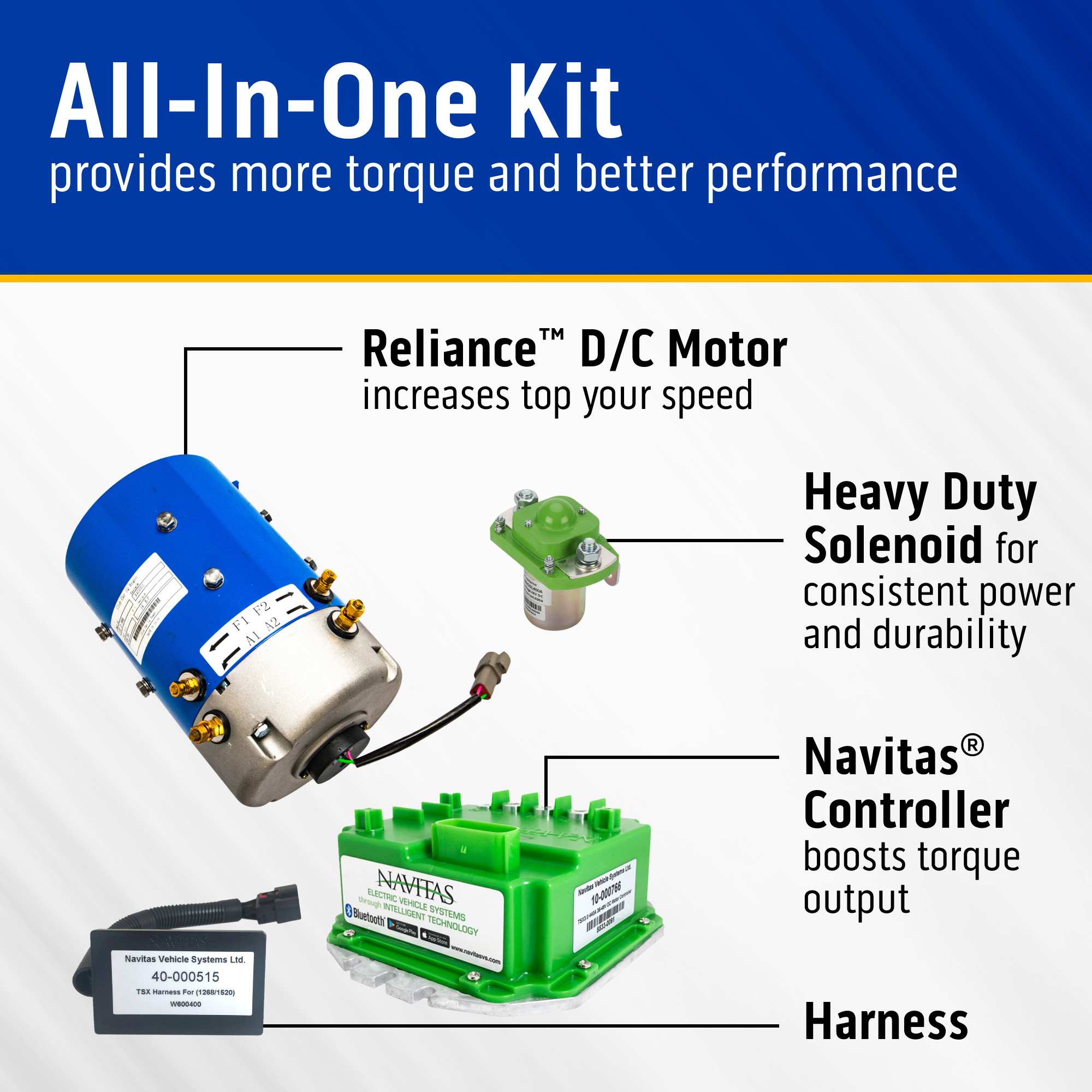

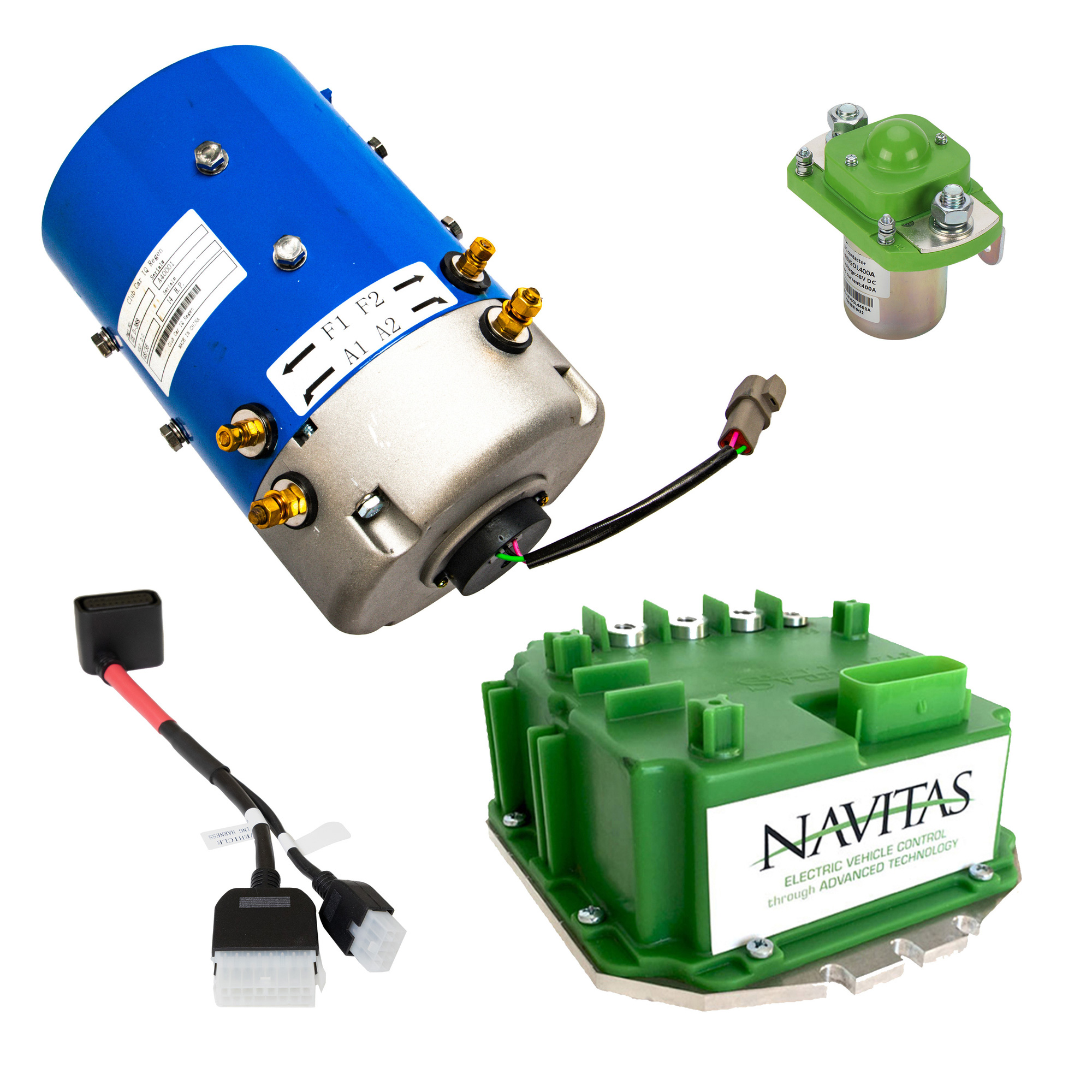

Kit Includes:

• Navitas TSX3.0 600A 36-48V DC Controller - 25-025
• Club Car Curtis 1510/1515 TSX Harness - 31923
• Bolt 48V HD Solenoid (36V Compatible) - 33-001
• Reliance Club Car IQ Regen (Shunt) High Torque Motor - 25-513

New Motor Break-In Instructions:

Follow these steps carefully:

• 1. Initial Drive: Drive the vehicle for 8–10 miles at varying speeds, taking care to accelerate gently during this period.
• 2. Temperature Monitoring:
  • Drive on a level surface, such as pavement or asphalt. Gradually accelerate and maintain full speed for 5–10 minutes. Then, stop and check the motor temperature.
  • During the first 30 minutes of use, check the motor temperature every 10 minutes. To do this, touch the center section of the motor near the aluminum end bell (silver component).
  • If the aluminum end bell is too hot to touch, stop using the motor and allow it to cool down.
  • If you can hold your hand on the motor for more than 5 seconds, it is safe to continue driving for a few more miles before rechecking the temperature. Repeat steps 1 and 2 until the 8-10 mile break-in period is completed and the motor operates at a cooler temperature. Following this process will help ensure your electric motor is properly conditioned for long-term use.
• CAUTION: Exercise caution while checking the motor. Avoid touching any exposed electrical connections while the power is on.
