Elevate your Club Car IQ Regen with the Curtis 1510/1515 600 Amp 10-Spline High Speed Motor and Controller Kit, engineered for maximum performance. This high-output setup delivers aggressive acceleration, higher top speeds, and smooth, responsive power throughout your ride. Featuring a heavy-duty 600-amp Curtis controller paired with a high-speed 10-spline motor, it offers dependable, consistent performance for those who demand serious power and upgrade potential. A 48V solenoid is also included, ensuring reliable power engagement and a more streamlined installation.

Motor Features:

• Club Car 48 volt DS IQ, Power Drive Plus, Precedent, Onward and Tempo high speed motor (Not a replacement for Series Motors)
• 10-spline coupler
• Direct factory motor replacement
• Includes a speed sensor/ magnet
• 1-year warranty
• With upgraded controller:
  • Speeds up to 24 mph at 48 volts
  • 20-25% torque increase
  • 9 HP peak at 48 volts

Controller Features:

• 600-Amp Bluetooth Navitas Controller for 36/48-Volt Systems
• Adjust the Top Speed, Acceleration and Regenerative Braking on-the-fly
• Easy Plug and Play installation
• Built-in Protection to prevent motor burn-out
• Compatible with series and shunt systems

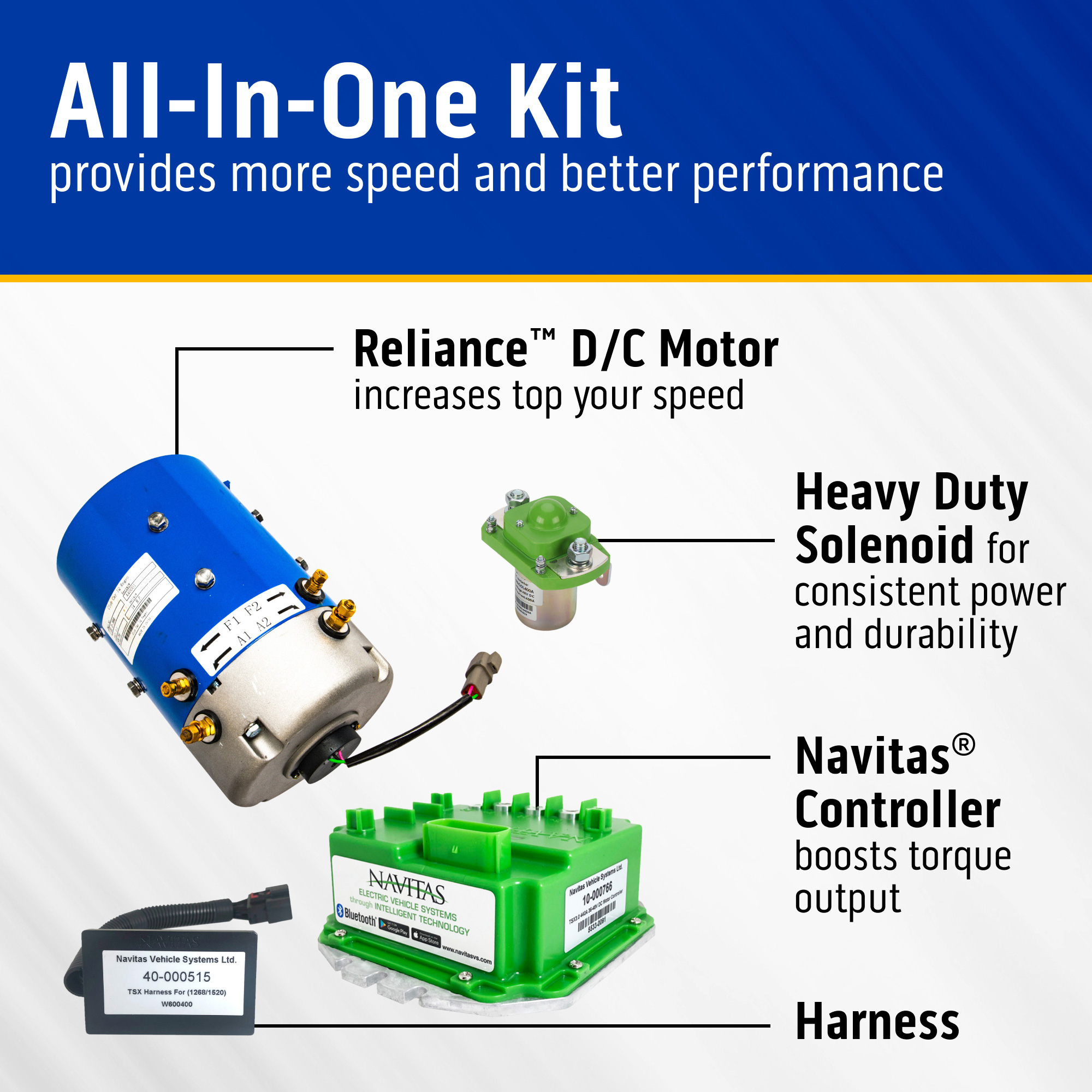

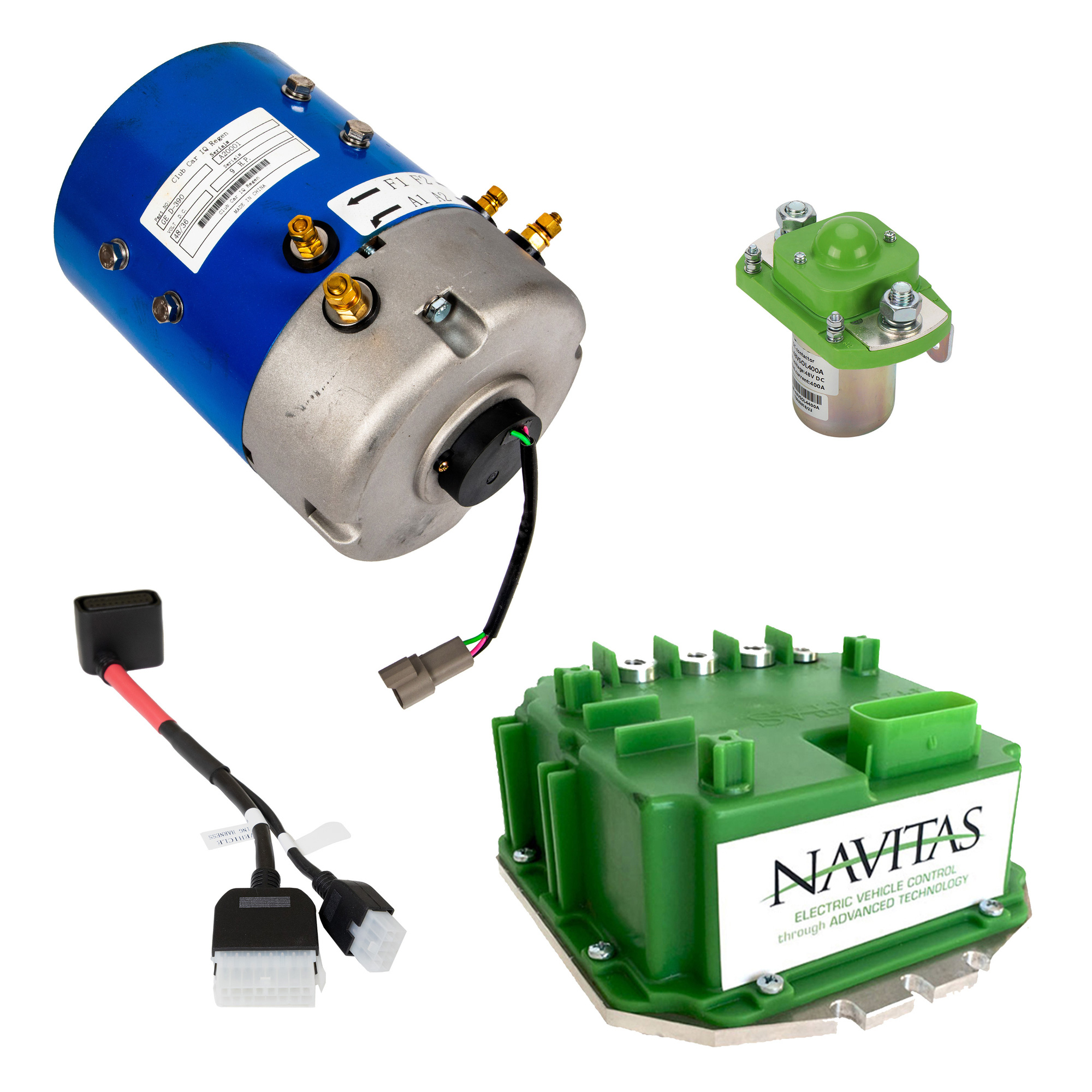

Kit Includes:

• Navitas TSX3.0 600A 36-48V DC Controller - 25-025
• Club Car Curtis 1510/1515 TSX Harness - 31923
• Bolt 48V HD Solenoid (36V Compatible) - 33-001

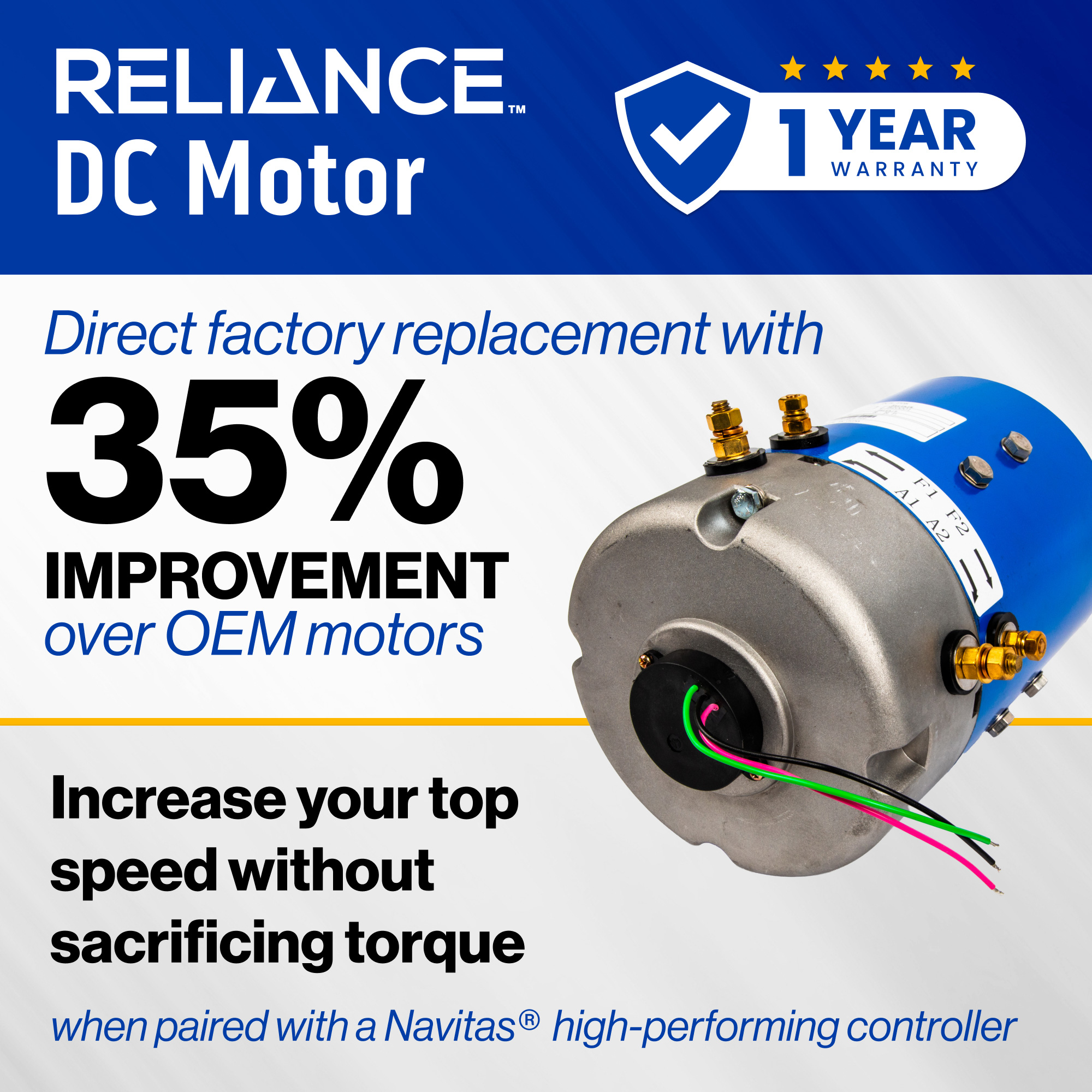

• Reliance Club Car IQ Regen 10-Spline High Speed Motor - 25-512

New Motor Break-In Instructions:

Follow these steps carefully:

• 1. Initial Drive: Drive the vehicle for 8–10 miles at varying speeds, taking care to accelerate gently during this period.
• 2. Temperature Monitoring:
  • Drive on a level surface, such as pavement or asphalt. Gradually accelerate and maintain full speed for 5–10 minutes. Then, stop and check the motor temperature.
  • During the first 30 minutes of use, check the motor temperature every 10 minutes. To do this, touch the center section of the motor near the aluminum end bell (silver component).
  • If the aluminum end bell is too hot to touch, stop using the motor and allow it to cool down.
  • If you can hold your hand on the motor for more than 5 seconds, it is safe to continue driving for a few more miles before rechecking the temperature. Repeat steps 1 and 2 until the 8-10 mile break-in period is completed and the motor operates at a cooler temperature. Following this process will help ensure your electric motor is properly conditioned for long-term use.
• CAUTION: Exercise caution while checking the motor. Avoid touching any exposed electrical connections while the power is on.
