Upgrade your EZGO Series cart with the 36/48V 440 Amp 19-Spline High Speed Motor and Controller Kit, engineered to deliver quicker acceleration and higher top-end speeds. This performance-driven setup combines a dependable 440-amp controller with a rugged 19-spline high-speed motor, providing smooth, consistent power and improved efficiency. A 48V solenoid is also included, helping ensure reliable power engagement and a more straightforward installation.

Motor Features:

• EZGO Series 36/48 volt high speed motor (Not a replacement for DCS, PDS or Sepex/Shunt motors)
• 19-spline coupler
• Direct factory motor replacement
• Includes a 1-year warranty
• With upgraded controller:
  • Speeds up to 20 mph at 48 VDC
  • Up to 25% increase in torque
  • 8 HP Peak at 48 volts

Controller Features:

• TSX 3.0 440AMP 36-48V Bluetooth Controller
• Cost effective improvement to increase the speed and power of a golf cart
• The Navitas app allows you to monitor the vehicle's performance
  • Built-in speedometer, gear indicator, and live battery voltage monitoring
  • One-click Car Lock Out feature
  • Provides alerts that you can send directly to your technician/dealer by email
• New "Cruise mode" for higher top speeds up to 23 mph with stock 18" tires
• Lower Speeds = Greater Range

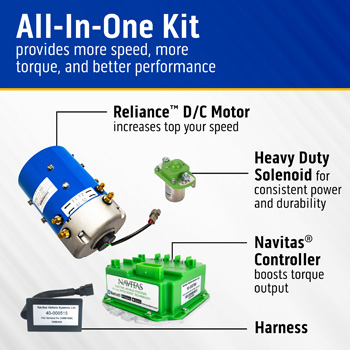

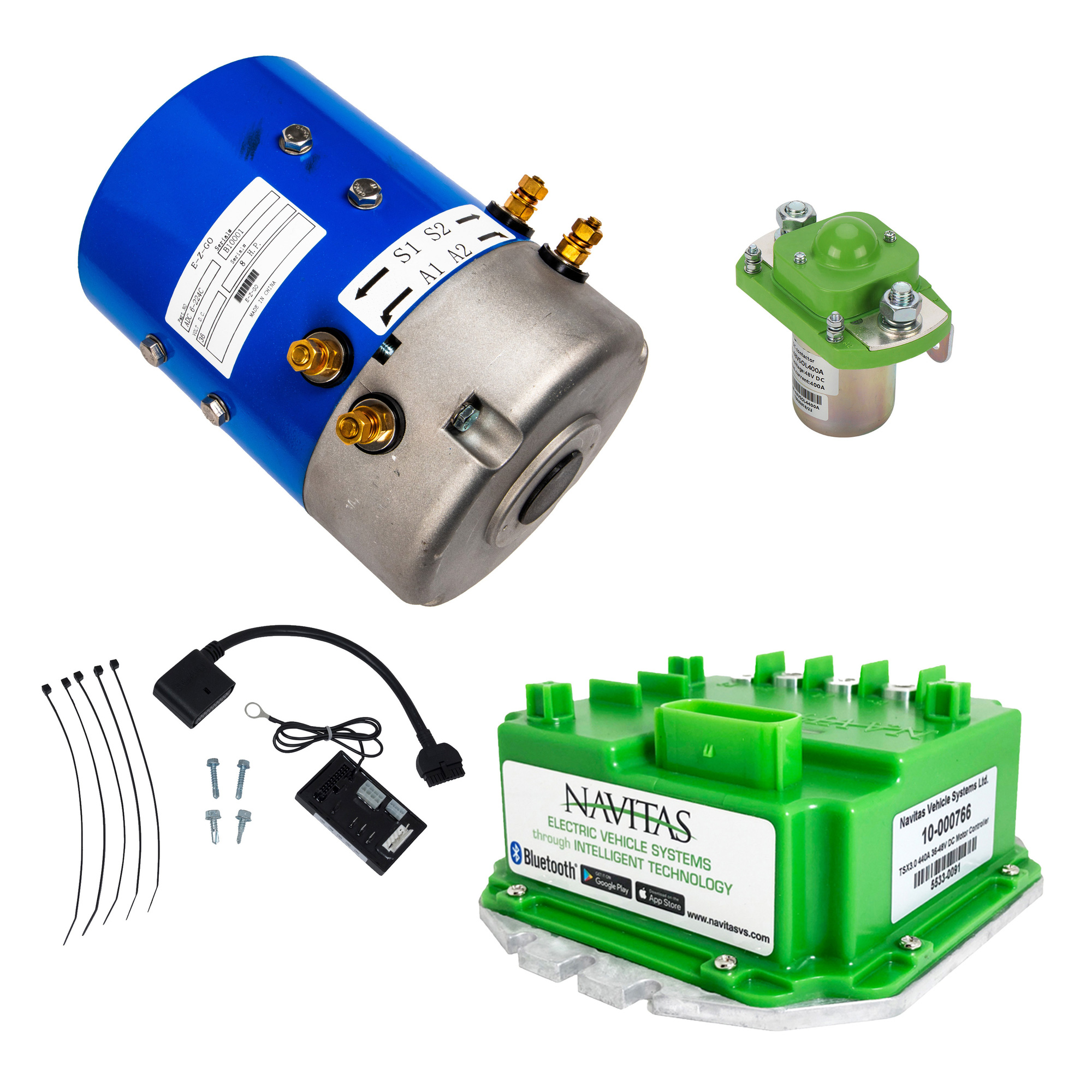

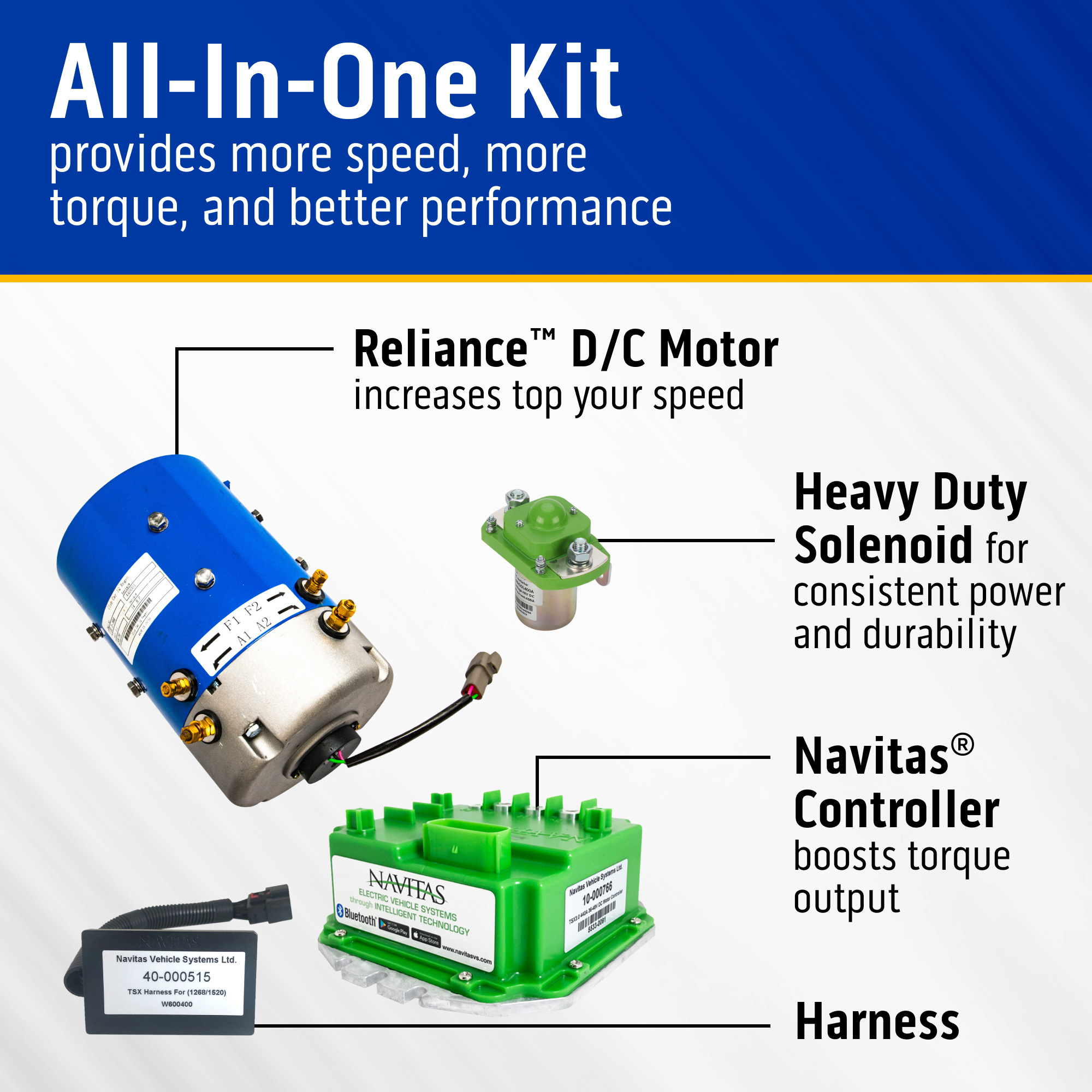

Kit Includes:

• Navitas TSX3.0 440A 36-48V DC Controller - 25-047
• EZGO ITS TSX Harness - 31931
• Bolt 48V HD Solenoid (36V Compatible) - 33-001

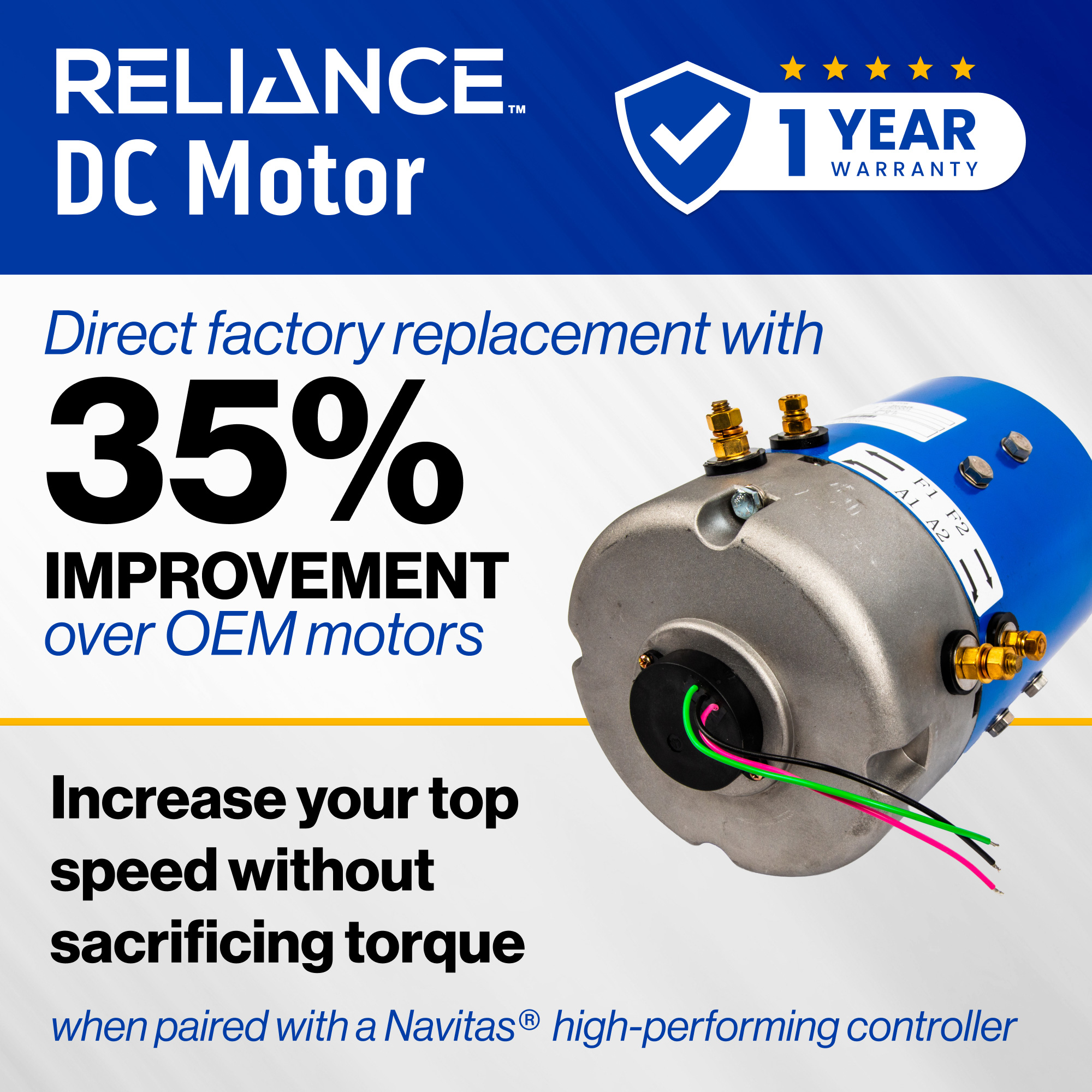

• Reliance EZGO Series 19-Spline High Speed Motor - 25-514

New Motor Break-In Instructions:

This motor is engineered to work with stock factory controllers and aftermarket controllers programmed with a custom, motor-specific field map. Using an incorrectly programmed controller may result in motor damage and will Void all warranties. Break-in Procedure for all new electric motors includes a "break-in period" to ensure the brushes properly seat against the commutator. Following this process will ensure optimal performance and longevity.

Follow these steps carefully:

• 1. Initial Drive: Drive the vehicle for 8–10 miles at varying speeds, taking care to accelerate gently during this period.
• 2. Temperature Monitoring:
  • Drive on a level surface, such as pavement or asphalt. Gradually accelerate and maintain full speed for 5–10 minutes. Then, stop and check the motor temperature.
  • During the first 30 minutes of use, check the motor temperature every 10 minutes. To do this, touch the center section of the motor near the aluminum end bell (silver component).
  • If the aluminum end bell is too hot to touch, stop using the motor and allow it to cool down.
  • If you can hold your hand on the motor for more than 5 seconds, it is safe to continue driving for a few more miles before rechecking the temperature. Repeat steps 1 and 2 until the 8-10 mile break-in period is completed and the motor operates at a cooler temperature. Following this process will help ensure your electric motor is properly conditioned for long-term use.
• CAUTION: Exercise caution while checking the motor. Avoid touching any exposed electrical connections while the power is on.
