Buggies Unlimited - item 691

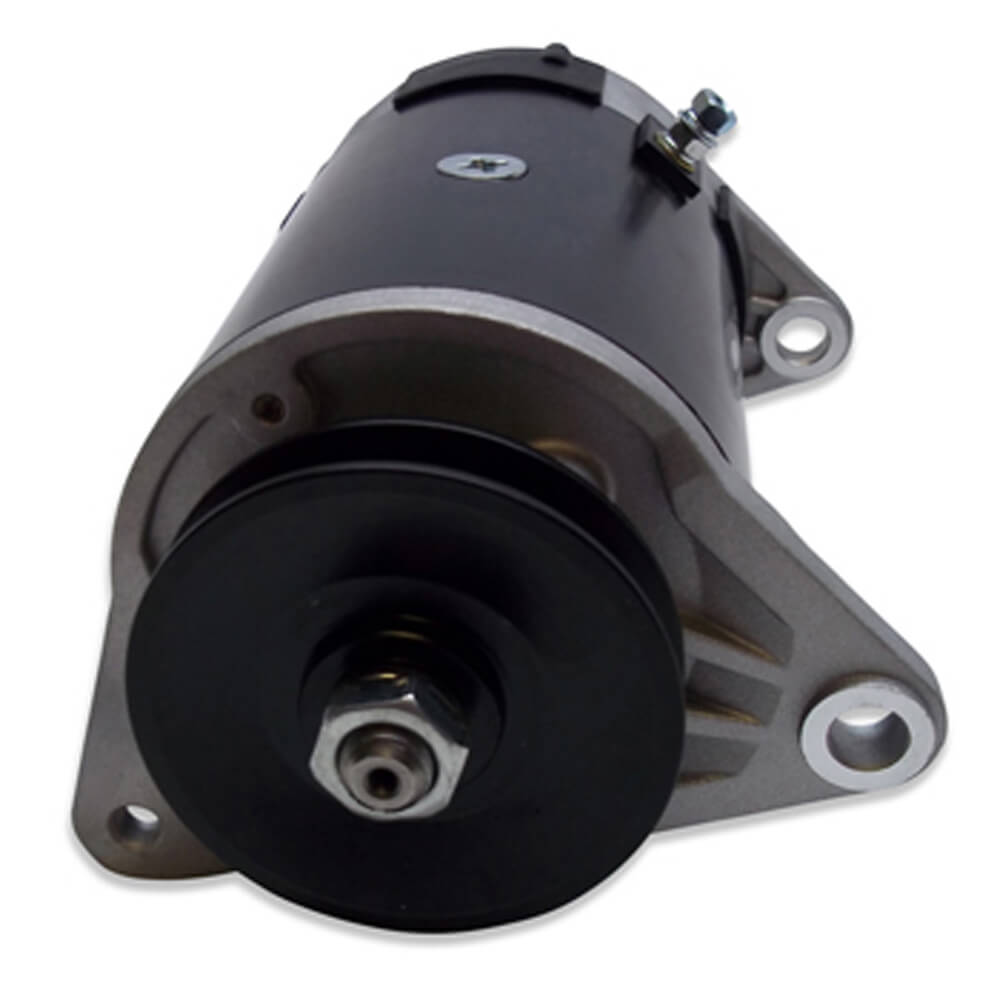

1978-93 EZGO 2-Cycle - Reliance Heavy Duty Starter Generator

 In Stock
Ships Fast
691
Reliance
$315.99 $466.95
You Save: $150.96
WARNING: Cancer & Reproductive Harm - https://www.p65warnings.ca.gov
Review:


Product Details

We all have that influential person who we lost too soon. It may have been a parent, or maybe it was an aunt or uncle. Even if it was just a friend or colleague close to your age, there is that one person for everyone that we wish we could have back. That is often the case for golf cart parts, especially the EZGO HD Starter Generator for 2-Cycles. It gave all kinds of signs when it was giving up the ghost that got ignored. Now that it is gone, you are faced with replacing it. Thankfully we have one that will not break the bank. Hearing the click of your golf cart solenoid to have nothing else run will break your heart.

This EZGO starter is not a hard part to install. We would recommend having someone there to help, even if it's just to hold things in place while you tighten them up. Give the experts at Buggies Unlimited a call today for questions about the golf cart replacement starter.

Specifications:

  • Fits EZGO 2-Cycle 1978-1993
  • Pulley included
  • Replaces OEM# 16511-G1
Item
691  Starter Generator; E-Z-GO 2 Cyc; 78-93
OEM
EZGO
Model
All
Start Year
1978
End Year
1993
Gas/Electric
Gas

Customer Reviews

21 Ratings
4.6out of 5 stars
21 Ratings

Rated 5 stars by 71% of reviewers

Rated 4 stars by 24% of reviewers

Rated 3 stars by 0% of reviewers

Rated 2 stars by 0% of reviewers

Rated 1 star by 5% of reviewers

Golf Cart
1-10 of 21 Reviews
Rated 4 out of 5
Mar 18, 2025
Things to keep in mind when installing this starter on a 1990 ezgo
I had received 3 new starter/generators that were missing insulators at the very same connector. The 4th one was a winner. I had to open up the holes for the large retaining bolt as the holes were undersized. No problem as I expected this from other posts. The terminals were reversed from the original so wiring had to be changed to make correct connections, otherwise, in forward direction the new starter was going in reverse. No real problem. F1 connector was now up instead of underneath. No problem on my 1990 EZGO. This starter works great.
Rated 5 out of 5
Jul 13, 2024
Exact fit works perfect!
Rated 5 out of 5
Feb 2, 2022
Works great
Ez to install
Rated 5 out of 5
Aug 31, 2021
Parts arrived quickly, works great
Rated 5 out of 5
Aug 31, 2021
Right part. Received quickly
Rated 5 out of 5
Jul 26, 2021
Starter/charger
The parts arrived one day early, the part fit perfectly and performed flawlessly...thank you and hats off to Buggies unlimited!

Thanks for the great service and outstanding parts fit and performance!
Definitely will shop and buy from them again!

Richard L.
Rated 5 out of 5
Jul 26, 2021
Good starter/generator.
Worker as expected.
Rated 5 out of 5
May 11, 2021
Road Rocket
Part works great and a perfect fit!
Rated 4 out of 5
May 5, 2021
Worked great. Only complaint is one of the lugs for the wires was in a different location but easy fix just had to make my wire longer.
Rated 4 out of 5
May 8, 2020
It works, but . . .
I have a 1990 ezgo Marathon. The replacement starter has a few differences. The F1 and F2 (sides of the starter) are opposite of my old starter. The end of the starter marked A1 and A2 are opposite of my old starter. The green wire that goes to the voltage regulator is now on the top of the generator. I pulled the wiring schematic and wired it exactly as labeled on the starter and schematic. Tada, the new starter runs in reverse of the old one. Last but not least, the 3/4” pivot bolt holes on the bottom of the starter are undersized. Twenty minutes with a dremel tool and sanding drum, I opened up the mounting holes and got the bolt to go thru both sides. Other than that, the new starter generator solved my problems.

You may also like...

Questions & Answers

Have a question? Ask owners.Have a question about this? Ask people who own it.
Start typing and see existing answers.
9 Questions
this starter generator work on a 1976 HD even so the date say 1978?

If you have a starter/generator system on your buggy now it will work, however the distance between the mounting bracket centers may need to be adjusted to ensure the alignment of the starter/generator with the pulley on your particular motor. The stater / generator is nothing more than an electric starter when energized in the "spin" mode and then becomes an electric current producer when driven by the carts motor. This unit can be used in multiple applications with mounting adjustments. If you could send pictures of how yours is set up I could better make an assessment of the level of difficulty in mounting it you may encounter. I hope this has helped.

Is there a warranty on this starter? I believe I bought it in February

Hi Christopher, please give us a call toll-free at 1-888-444-9994 and our service agents can provide further support.

I have an 86’ ezgo with a hitachi starter is this a direct replacement for that unit? Part # 1427060200
GSB107-03

The starter I bought from Buggies was slighty different from the original but not enough to be confusing..The starter I bought looks exactly like the one in the picture. It works exceptionally well

Is this starter generator reversible??

Yes this starter/generator is for the 2 cycle engine and it is reverse polarity it will charge in both directions

Is a reliance starter for a EZ GO MARATHON 1988? THE REPAIRMAN SPECIficallyLY said for a MARATHON

yes this fits the marathon. mine is a 88 model and fits like it should. hope this helps?

Can I make it fit a 77 gx440-3 ? Thanks

The mounting is different.

If I give you the model of the cart can’t that tell what year it is?
Will this definitely fit a 1988 EZ GO MARATHON gas?
Where can I buy a starter for a 1988 EZ GO Marathon cart?
